LVX Series LVX-A30SFYG+ Circuit Board End Connector LVX-A40LMSG+ 0.4mm Pitch 1.2mm Mated Height

Place of Origin China
Brand Name sino-media
Certification UL ,ISO13485 , ISO9001.2005 , ISO14001
Model Number LVX series LVX-A30SFYG+
Minimum Order Quantity quantity can be negotiable
Price Most favorable
Packaging Details PE inner, carton outer
Delivery Time 2-3 weeks for samples3-4 weeks for massive
Payment Terms T/T, Western Union
Supply Ability 500,000pcs/week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name LVX Series LVX-A30SFYG+ Connector LVX-A30SFYG+
Micro-Coaxial Wire (AWG) #42, Length Customize
Contact Pitch 0.4mm OEM/ODM Customize
Pin-out 30 40 Certification ISO9001
High Light

0.4mm pitch micro coaxial cable

,

lvx series micro coaxial cable

Leave a Message
Product Description
ROHS LVX series LVX-A30SFYG+ For use with circuit board end connector
LVX-A40LMSG+ 0.4mm, pitch 1.2mm mated height

Part Name Material and Finish
Insulator LCP resin (GF), UL 94V-0 (Color: Black)
Contact Copper alloy, Gold over nickel plated

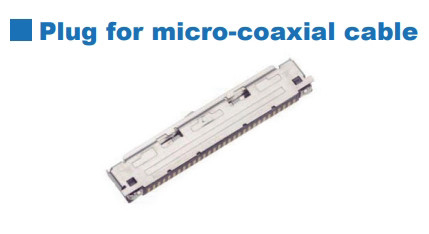

Plug Shielded Shell Stainless steel, selective tin plated

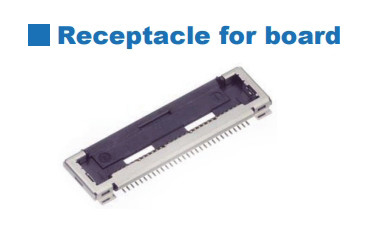

Receptacle Shielded Shell Stainless steel, tin plated



Specification Details
Rated Voltage 100 V AC (r.m.s)
Rated Current 0.2 A per contact
Insulation Resistance ≥ 100 MΩ at 250 V DC
Dielectric Withstanding Voltage 250 V AC (r.m.s) for one minute
Operating Temperature Range -20°C to +70°C

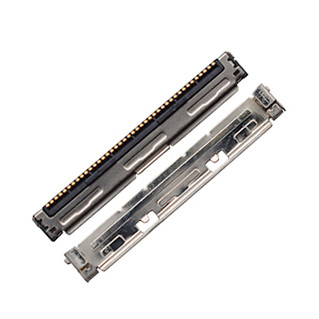

LVX Series LVX-A30SFYG+ Circuit Board End Connector LVX-A40LMSG+ 0.4mm Pitch 1.2mm Mated Height 0

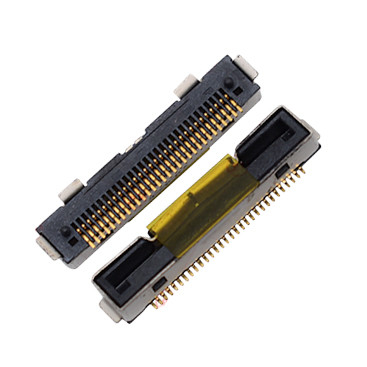

LVX Series LVX-A30SFYG+ Circuit Board End Connector LVX-A40LMSG+ 0.4mm Pitch 1.2mm Mated Height 1LVX Series LVX-A30SFYG+ Circuit Board End Connector LVX-A40LMSG+ 0.4mm Pitch 1.2mm Mated Height 2LVX Series LVX-A30SFYG+ Circuit Board End Connector LVX-A40LMSG+ 0.4mm Pitch 1.2mm Mated Height 3

Q1. Is it a factory?
A: Yes,we have more than 16 years of design and manufacturring experience!
Q2. Is there any certification?
A: Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A: We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq

1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive

ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro

cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a

nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a

nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%

to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100

3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and

offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.

How to contact us?
send your inquiry details in the below, click "send" now! free sample and best price are waiting for

you, if you can't find the product in our web, you can also send an inquiry to us, even if we don't make

it, we will find the same product with good quantity and good price.
