I-PEX 20525-030E-02 Micro Coaxial Connector 0.4mm Pitch 20Gbps/Lane

Place of Origin China
Brand Name I-PEX
Model Number 20525-030E-02
Minimum Order Quantity quantity can be negotiable
Price Most favorable
Packaging Details PE inner, carton outer
Delivery Time 10-28 days upon receipt of payment
Payment Terms T/T, Western Union
Supply Ability 500,000pcs/week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Certification ISO9001 Product Name I-Pex Cabline-Ca 0.4mm Pitch 20525-020e-02 Micro Coaxial Connector
Connector 20525-030e-02 Available Pin Count 30
Contact Pitch 0.4mm Service Design
Express DHL FEDEX UPS TNT MOQ Quantity Can Be Negotiable
High Light

Micro Coaxial Connector 0.4mm Pitch


Micro Coaxial Connector With Mechanical Lock


20Gbps/Lane Micro Coaxial Cable Connector

Leave a Message
Product Description
I-PEX CABLINE®-CA 20525-030E-02 Micro Coaxial Connector 0.4mm Pitch
20Gbps/ Lane with mechanical lock
20525-020e-02 Recommended models:
20633-310T-01S   20633-212T-01S   20633-220T-01S   20633-230T-01S   20633-240T-01S   20633-250T-01S
20633-260T-01S   20634-210T-02   20634-112T-02   20634-120T-02   20634-130T-02   20634-140T-02
20634-150T-02   20634-160T-02   2764-0101-003   2764-0121-002   2764-0201-002   2764-0301-002
2764-0401-002   2764-0501-002   2764-0601-002   2766-0101   2766-0121   2766-0201

2766-0301   2766-0401   2766-0501   2766-0601   20525-210E-02   20525-012E-02
20525-020E-02   20525-030E-02   20525-040E-02   20525-050E-02   20525-060E-02


Mating Direction
Contact pitch
0.40 mm
1.10 Max (1.00 Nom.) ,
5.73 mm
Width Formula
6.95+(0.4*?p) mm
Pin count
10 12 20 30 40 50 60
Micro-Coaxial Cable (AWG)
#38 #40 #42 #44 #46
Discrete Cable (AWG)
#34 #36 #38 #39 #40 #42 #44 #46
Current rating
0.1A AC/DC [AWG #44] per contact/up to 60 contacts 0.24A AC/DC [AWG #42] per contact/up to 50 contacts 0.3A AC/DC [AWG #40] per contact/up to 40 contacts 0.5A AC/DC [AWG #38] per contact/up to 14 contacts 0.8A AC/DC [AWG #36] per contact/up to 6 contacts 1.0A AC/DC [AWG #34] per contact/up to 4 contacts
Applicable Standards (Reference Only)
USB4 (20 Gbps/lane) USB 3.1 Gen 2 (10 Gbps) USB 3.1 Gen 1 (5 Gbps) eDP HBR 3 (8.1 Gbps) eDP HBR 2 (5.4 Gbps) eDP (2.7 Gbps) HDMI 2.0 (6 Gbps) V-By-One HS 1.4 (4 Gbps) MiPi standards


1. One possible application for this connector is in the field of medical devices. Medical devices often require high-performance

connectors to ensure accurate and reliable data transfer between devices and sensors. The small size and lightweight design

of the 20525-020e-02 connector make it an ideal choice for use in medical applications where space is limited and weight is

a critical factor.


2. Another potential application for this connector is in the field of aerospace and defense. The 20525-020e-02 connector

can be used in avionics and military communication systems to provide high-speed data transfer and reliable connectivity

in harsh environments. The small size and high-performance capabilities of this connector make it an ideal choice for use

in aerospace and defense applications.


3. Overall, the 20525-020e-02 Micro Miniature Coaxial Cable Connector is a versatile and reliable connector that can be

used in a wide range of applications where small size, lightweight, and high-performance are critical factors.

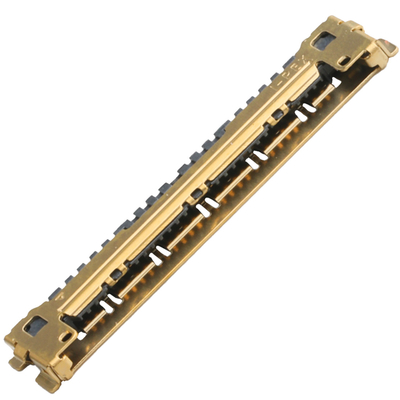

I-PEX 20525-030E-02 Micro Coaxial Connector 0.4mm Pitch 20Gbps/Lane 0

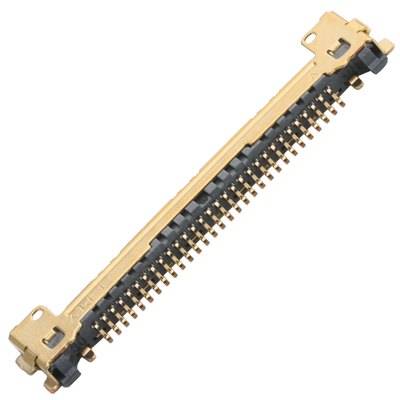

I-PEX 20525-030E-02 Micro Coaxial Connector 0.4mm Pitch 20Gbps/Lane 1

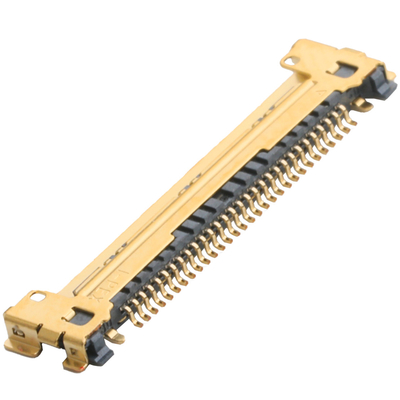

I-PEX 20525-030E-02 Micro Coaxial Connector 0.4mm Pitch 20Gbps/Lane 2I-PEX 20525-030E-02 Micro Coaxial Connector 0.4mm Pitch 20Gbps/Lane 3I-PEX 20525-030E-02 Micro Coaxial Connector 0.4mm Pitch 20Gbps/Lane 4
