20856-030T-01 Lvds Connector Micro Coaxial Cable 30 Pin For Shielded FFC FPC

Place of Origin China
Brand Name I-PEX
Certification ISO9001
Model Number 20856-030T-01
Minimum Order Quantity quantity can be negotiable
Price Most favorable
Packaging Details cartons
Delivery Time 10-15 days
Payment Terms T/T
Supply Ability 9999 pcs per day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Mating Direction Horizontal Contact Pitch 0.40 Mm
Height 1.10 Max Depth 6.74 Mm
Width Formula 6.95 + (0.4 * ?p) Mm Pin Count 30 40 50
Current Rating 0.3A / Signal Pin Full Shielding (ZenShield®) Yes
Mechanical Lock Yes Shielded FPC / FFC Yes
Other Features For Shielded FFC/FPC
High Light

Lvds Connector Micro Coaxial Cable

,

20856 030T 01 Micro Coaxial Cable

,

0.4mm Pitch Lvds Connector

Leave a Message
Product Description

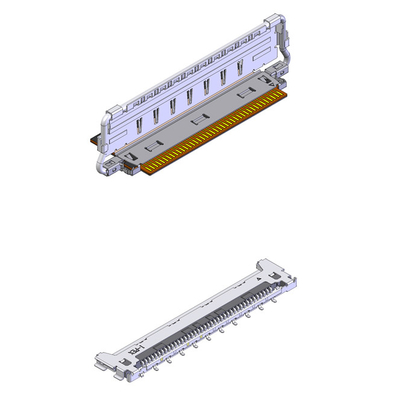

Lvds Connector Micro Coaxial Cable 30 Pin For Shielded FFC FPC



I-PEX CABLINE-CA IIF 20856-030T-01 micro coaxial cable connector lvds connector 30 pin 0.5mm pitch



Detailed parameter

Mating Direction
Horizontal
Contact pitch
0.40 mm
Height
1.10 Max
Depth
6.74 mm
Width Formula
6.95 + (0.4 * ?p) mm
Pin count
30 40 50
Current rating
0.3A / Signal pin
Full shielding (ZenShield®)
Yes
Mechanical lock
Yes
Shielded FPC / FFC
Yes
Other Features
For Shielded FFC/FPC

Product introduction:

Fully-shielded with multi-point ground and mechanical lock, 0.4 mm pitch, horizontal mating

type FPC plug connector





Product advantage

  • ZenShield® fully-shielded with multi-point grounds to prevent EMI leakage

  • Mechanical locking cover prevents incomplete mating and back-out/un-mating

  • Multiple Connector Options with CABLINE®-CA Series

20856-030T-01 Lvds Connector Micro Coaxial Cable 30 Pin For Shielded FFC FPC 020856-030T-01 Lvds Connector Micro Coaxial Cable 30 Pin For Shielded FFC FPC 1













20856-030T-01 Lvds Connector Micro Coaxial Cable 30 Pin For Shielded FFC FPC 2

sino-media produces various cable assemblies in the field of drones, AR/VR, AR, VR and other micro coaxi

al cables, radar/navigation, cameras, security monitors, facial recognition payment, and has established c

ooperative relationships with customers. We have a strong and experienced technical team that can provi

de you with efficient solutions.

20856-030T-01 Lvds Connector Micro Coaxial Cable 30 Pin For Shielded FFC FPC 3

20856-030T-01 Lvds Connector Micro Coaxial Cable 30 Pin For Shielded FFC FPC 4

20856-030T-01 Lvds Connector Micro Coaxial Cable 30 Pin For Shielded FFC FPC 520856-030T-01 Lvds Connector Micro Coaxial Cable 30 Pin For Shielded FFC FPC 6

20856-030T-01 Lvds Connector Micro Coaxial Cable 30 Pin For Shielded FFC FPC 7

Q1. Is it a factory?
A:Yes,we have more than 15 years of design and manufacturring experience!
Q2. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A:We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq

1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive

ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro

cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a

nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a

nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%

to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100

3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and

offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
