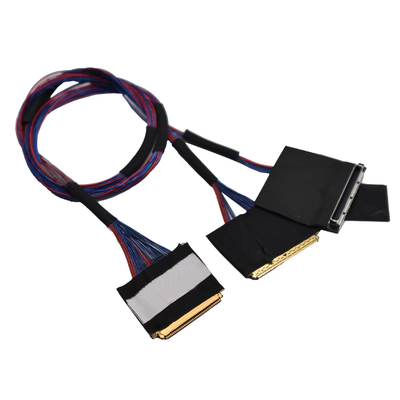

IPEX CABLINE-VS II 20846-030T-01 lvds cable 30 pin Fully-shielded with mechanical lock, Suitable for high-data-rate

Place of Origin China
Brand Name I-PEX
Certification ISO9001
Model Number CABLINE-VS II 20846-030T-01
Minimum Order Quantity quantity can be negotiable
Price Most favorable
Packaging Details cartons
Delivery Time 10-15 days
Payment Terms T/T
Supply Ability 99999 pcs per day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Mating Direction Horizontal Contact Pitch 0.50 Mm
Height 1.20 Max Depth 6.70 Mm
Width Formula 6.85+(0.5 *?p) Mm Pin Count 20 30 40
Micro-Coaxial Cable (AWG) #36 #38 #40 #42 #44 #46 Discrete Cable (AWG) #32 #34 #36 #38 #39 #40 #42 #44 #46
Current Rating 0.24A AC/DC [AWG #42] Per Contact 0.3A AC/DC [AWG #40] Per Contact 0.5A AC/DC [AWG #38] Per Contact 0.8A AC/DC [AWG #36] Per Contact 1.0A AC/DC [AWG #34] Per Contact For Power 1.0A AC/DC [AWG #32] Per Contact For Power Applicable Standards (Reference Only) USB4 (20 Gbps/lane) USB 3.1 Gen 2 (10 Gbps) USB 3.1 Gen 1 (5 Gbps) EDP HBR 3 (8.1 Gbps) EDP HBR 2 (5.4 Gbps) EDP (2.7 Gbps) HDMI 2.0 (6 Gbps) V-By-One HS 1.4 (4 Gbps) MiPi Standards
High Light

Full Shielding Micro Coaxial Cable

,

30pin Micro Coaxial Cable

,

Mechanical Lock LVDS LCD Cable

Leave a Message
Product Description

IPEX CABLINE-VS II 20846-030T-01 lvds cable 30 pin Fully-shielded with mechanical lock, Suitable for high-data-rate



Mating Direction
Horizontal
Contact pitch
0.40 mm
Height
1.10 Max
Depth
6.74 mm
Width Formula
6.95 + (0.4 * ?p) mm
Pin count
30 40 50
Current rating
0.3A / Signal pin
Full shielding (ZenShield®)
Yes
Mechanical lock
Yes
Shielded FPC / FFC
Yes
Other Features
For Shielded FFC/FPC

ZenShield® fully-shielded with multi-point grounds to prevent EMI leakage

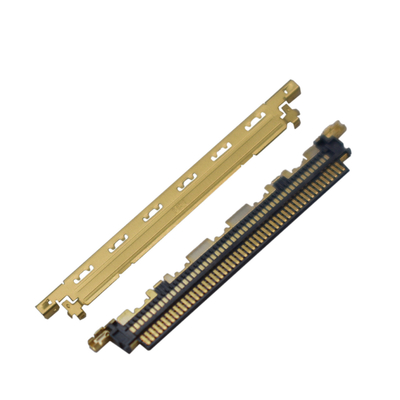

IPEX CABLINE-VS II 20846-030T-01 lvds cable 30 pin Fully-shielded with mechanical lock, Suitable for high-data-rate 0

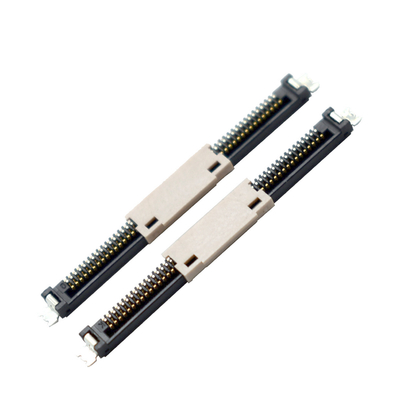

Mechanical locking cover prevents incomplete mating and back-out/un-matingIPEX CABLINE-VS II 20846-030T-01 lvds cable 30 pin Fully-shielded with mechanical lock, Suitable for high-data-rate 1

Multiple Connector Options with CABLINE®-CA Series

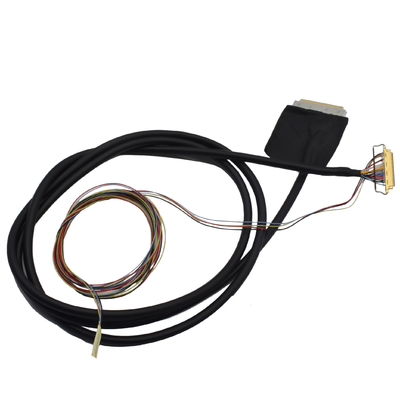

IPEX CABLINE-VS II 20846-030T-01 lvds cable 30 pin Fully-shielded with mechanical lock, Suitable for high-data-rate 2
