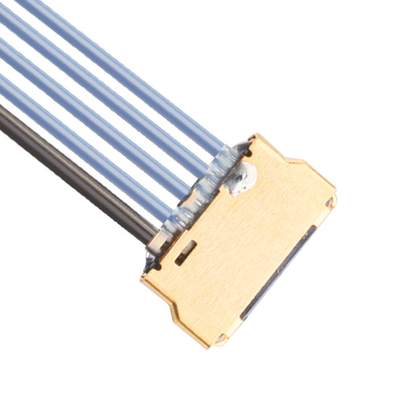

Vertical IPex Micro Coaxial Cable CABLINE-UY 5pin 20857-05T-01 5 pin lcd cable

Place of Origin China
Brand Name I-PEX
Certification ISO9001
Model Number CABLINE-UY 20857-05T-01
Minimum Order Quantity quantity can be negotiable
Price Most favorable
Packaging Details cartons
Delivery Time 10-15 days
Payment Terms T/T
Supply Ability 99999 pcs per day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Contact Pitch 0.35 Mm Height 0.82 Max (0.76 Nom.) ,
Depth 3.10 Mm Width Formula Wire Plug : 2.15 + (0.35 * ?p) SMT Plug : 2.02 + (0.35 * ?p)  Mm
Pin Count 5 10 Micro-Coaxial Cable (AWG) #40 #42 #44 #46
Discrete Cable (AWG) #36 #38 #39 #40 #42 #44 #46 Applicable Standards (Reference Only) PCIe Gen 5 (32 GT/s) Thunderbolt 4 (20 Gbps/lane) EDP HBR 3 (8.1 Gbps)
Full Shielding (ZenShield®) No Mechanical Lock No
High Light

ISO9001 Certified Micro Coaxial Cable

,

IPex Micro Coaxial Cable

,

IPex LVDS LCD Cable

Leave a Message
Product Description

CABLINE-UY 10pin 20857-010T-01 20907-010E-01 3568-0101 20854-010E-02 IPex micro coaxial cable



Mating Direction Vertical
Contact pitch 0.35mm
Height 0.82 Max (0.76 Nom.) ,
Depth 3.10 mm
Width Formula Wire plug : 2.15 + (0.35 * ?p) SMT plug : 2.02 + (0.35 * ?p)  mm
Pin count 5,10
Micro-Coaxial Cable (AWG) #40 #42 #44 #46
Discrete Cable (AWG) #36 #38 #39 #40 #42 #44 #46
Applicable Standards (Reference Only) PCIe Gen 5 (32 GT/s) Thunderbolt 4 (20 Gbps/lane) eDP HBR 3 (8.1 Gbps)
Mechanical lock No
Full shielding (ZenShield®) No





Part Number Description Pin count Part Number
CABLE ASSEMBLY FOR WIRE PLUG 5 20857-005T-01
10 20857-010T-01
Cable plug parts Plug Housing
5 20907-005E-01
10 20907-010E-01
Plug Shell 5 3568-0051
10 3568-0101
Receptacle 5 20854-005E-02
10 20854-010E-02



Cabline-UYVertical IPex Micro Coaxial Cable CABLINE-UY 5pin 20857-05T-01 5 pin lcd cable 1Vertical IPex Micro Coaxial Cable CABLINE-UY 5pin 20857-05T-01 5 pin lcd cable 2Vertical IPex Micro Coaxial Cable CABLINE-UY 5pin 20857-05T-01 5 pin lcd cable 3

Vertical IPex Micro Coaxial Cable CABLINE-UY 5pin 20857-05T-01 5 pin lcd cable 4







Vertical IPex Micro Coaxial Cable CABLINE-UY 5pin 20857-05T-01 5 pin lcd cable 5



SINO-TECH is a cable component manufacturer with more than 16 years of history. It is widely used in

industrial control large or small equipment. Video transmission cable with LCD screen and motherboard cable ,

Most of the current products are used in liquid crystal electronic products, such as our current Video transmission

cable with LCD screen and motherboard cable lvds cable, lcd cable. edp cable, usually used in computers,

televisions, mobile phones, cameras, treadmills, etc.

Vertical IPex Micro Coaxial Cable CABLINE-UY 5pin 20857-05T-01 5 pin lcd cable 6



Q1. Is it a factory?
A:Yes,we have more than 16 years of design and manufacturring experience!
Q2. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A:We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq

1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive

ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro

cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a

nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a

nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%

to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100

3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and

offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.



How to contact us?
send your inquiry details in the below, click "send" now! free sample and best price are waiting for

you, if you can't find the product in our web, you can also send an inquiry to us, even if we don't make

it, we will find the same product with good quantity and good price.
