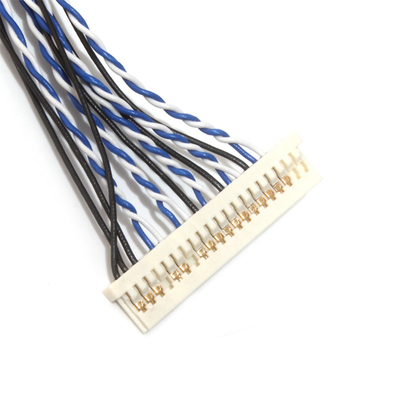

1.25mm pin pitch Lcd Lvds Cable HRS DF14-20S-1.25C TO DF14-30S-1.25C

Basic Information
Place of Origin: China
Brand Name: HRS
Certification: UL ,ISO13485 , ISO9001.2005 , ISO14001
Model Number: DF14-20S-1.25C / DF14-30S-1.25C
Minimum Order Quantity: 500PCS
Price: Price to be negotiated
Packaging Details: PE inner, carton outer
Delivery Time: 10-28 days upon receipt of payment
Payment Terms: T/T, Western Union
Supply Ability: 500,000pcs/week
Product Name: HRS DF14-20S-1.25C TO DF14-30S-1.25C Lcd Lvds Cable Assembly Connector A: HRS DF14-20S-1.25C
Connector B: HRS DF14-30S-1.25C Item: 20PIN/30PIN
Service: Design Contact Pitch: 1.25mm
High Light:

1.25mm Lcd Lvds Cable


Lcd Lvds Cable HRS


HRS df14 30s 1.25 c

HRS DF14-20S-1.25C TO DF14-30S-1.25C lcd lvds cable assembly


Low profile crimp connector with 1.25mm pin pitch
1. Low height (the height of the board is 2.5mm)
2, suitable for automatic assembly
3. Four-sided wall type, no friction between the socket and the mounting plate

DF14 Parameters Table

Parameters Table 2, 3, 4, 5, 6, 7, 8, 9, 10, 15, 20, 25, 30
Connector length (pitch direction) 4.45, 5.7, 6.95, 8.2, 9.45, 10.7, 11.95, 13.2, 14.45, 20.7, 26.95, 33.2, 39.45 mm
Opening pitch 1.25mm
Connector width (portrait) 5.8mm
Applicable wire size (AWG) 26,28, 30,32

LVDS cable assembly summary


Wire harness assembly used: Micro coaxial cable, Fine Coaxial Cable,SGC cable,Teflon wire,Micro coax,
We could custom JAE Wiring Harness Assemblies, Molex wire harness assembly, Hirose Wiring Harness
Assemblies, Tyco wire harness assembly, Samtec wiring harness assembly,HRS wire harness,OEM ODM
Our engineering staff is well versed in the design and construction of wire harnesses and is available to
assist in the development of the most efficient harness to meet your demands.



1.25mm pin pitch Lcd Lvds Cable HRS DF14-20S-1.25C TO DF14-30S-1.25C 01.25mm pin pitch Lcd Lvds Cable HRS DF14-20S-1.25C TO DF14-30S-1.25C 1

1.25mm pin pitch Lcd Lvds Cable HRS DF14-20S-1.25C TO DF14-30S-1.25C 2

Company Profile

1.SINO-TECH has more than 10 years of experience in designing and customizing cable assemblies and

waterproof cables, depending on your needs.
2.The types of custom cable assemblies that our factory can build are: lvds cable assemblies, micro coaxial

cable assemblies, i-pex cable assemblies, LVDS EDP cable assemblies, molex cable assemblies, jst cable


1.25mm pin pitch Lcd Lvds Cable HRS DF14-20S-1.25C TO DF14-30S-1.25C 31.25mm pin pitch Lcd Lvds Cable HRS DF14-20S-1.25C TO DF14-30S-1.25C 4

1.25mm pin pitch Lcd Lvds Cable HRS DF14-20S-1.25C TO DF14-30S-1.25C 5

Q1. Is it a factory?
A:Yes,we have more than 15 years of design and manufacturring experience!
Q2. How long does it take to place an order?
A: 3-4 weeks
Q3. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q4. What is our specialty?
A:We can design products on the application.
Q5.Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq

1000PCs. Mould fee will be charged according to design.
Q6. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive

ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro

cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a

nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q7. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a

nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q8. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%

to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100

3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and

offer images, and we will solve your problem in the way of replacing with new order or refund.
Q9. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.


How to contact us?
send your inquiry details in the below, click "send" now! free sample and best price are waiting for

you, if you can't find the product in our web, you can also send an inquiry to us, even if we don't make

it, we will find the same product with good quantity and good price.
