Product Details
Mating Direction Horizontal Contact Pitch 0.50 Mm
Height 1.10 Max (1.00 Nom.) , Depth 5.39 Mm
Width Formula 3.7+(0.5*?P) Mm Pin Count 6 8 10
Discrete Cable (AWG) #34 Full Shielding (ZenShield) No
Mechanical Lock Yes Current Rating 0.5A/pin FPC 0.7A/pin DW (AWG #34)
High Light

Universal Lvds Micro Coax Cable

,

20597 010E 02 Micro Coax Cable

,

20598-010T 02 Universal Lvds Cable

Leave a Message
Product Description

Universal Lvds Micro Coax Cable DW 5 20598-010T 02 20597 010E 02



I-PEX micro coax cable DW-5 20598-010T-02 20597-010E-02 universal lvds micro coax cables



Detailed parameter

Mating Direction

Horizontal

Contact pitch

0.50 mm

Height

1.10 Max (1.00 Nom.) ,

Depth

5.39 mm

Width Formula

3.7+(0.5*?P) mm

Pin count

6 8 10

Discrete Cable (AWG)

#34

Current rating

0.5A/pin FPC 0.7A/pin DW (AWG #34)

Full shielding (ZenShield®)

No

Mechanical lock

Yes

Other Features

With Hold Down

Application characteristics

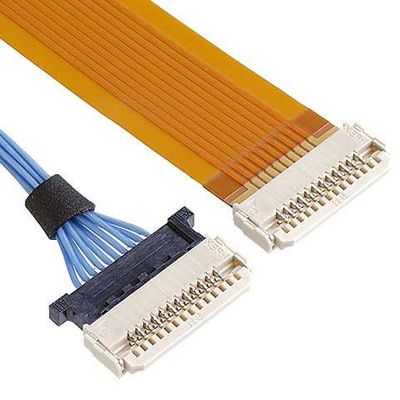

Hybrid connector for discrete wire and FPC, height = 1.0 mm, 0.5 mm pitch, horizontal, backflip





Universal Lvds Micro Coax Cable DW 5 20598-010T 02  20597 010E 02 0

Universal Lvds Micro Coax Cable DW 5 20598-010T 02  20597 010E 02 1

Universal Lvds Micro Coax Cable DW 5 20598-010T 02  20597 010E 02 2

Product advantage

  • Hybrid connector for discrete wire and FPC

  • Smallest in class at 1.0 mm height

  • Anti-reverse mating structure reduces operational error





Universal Lvds Micro Coax Cable DW 5 20598-010T 02  20597 010E 02 3
