| Place of Origin: | China |
|---|---|
| Brand Name: | i-pex |
| Certification: | UL ，ISO13485 , ISO9001.2005 , ISO14001 |
| Model Number: | 20846-020T-01 |
| Minimum Order Quantity: | 100PCS |
| Price: | Price negotiable |
| Packaging Details: | PE inner, carton outer |
| Delivery Time: | 10-28 days upon receipt of payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500,000pcs/week |
| Product Name: | I-Pex Vs Ii 0.5mm20846-020t-01 Micro Coaxial Cable Connector Lvds Cable Assembly | Connector A: | 20846-020t-02 20847-020T-02 20849-020E-02 RECEPTACLE 20849-020E-01-S |
|---|---|---|---|
| Micro-Coaxial Wire (AWG): | #36 #38 #40 #42 #44 #46 | Available Pin Count: | 20 30 40 |
| Contact Pitch: | 0.5mm Pitch | Height：: | 1.20 Max |
| Item: | Micro Coaxial Cable | Service: | Design |
| Length: | 200mm | Express: | DHL FEDEX UPS TNT |
| High Light: | 0.5mm Lvds Coaxial Cable,20847 020T 02 Lvds Coaxial Cable,20849 020E 01 S Lvds Wire |
||

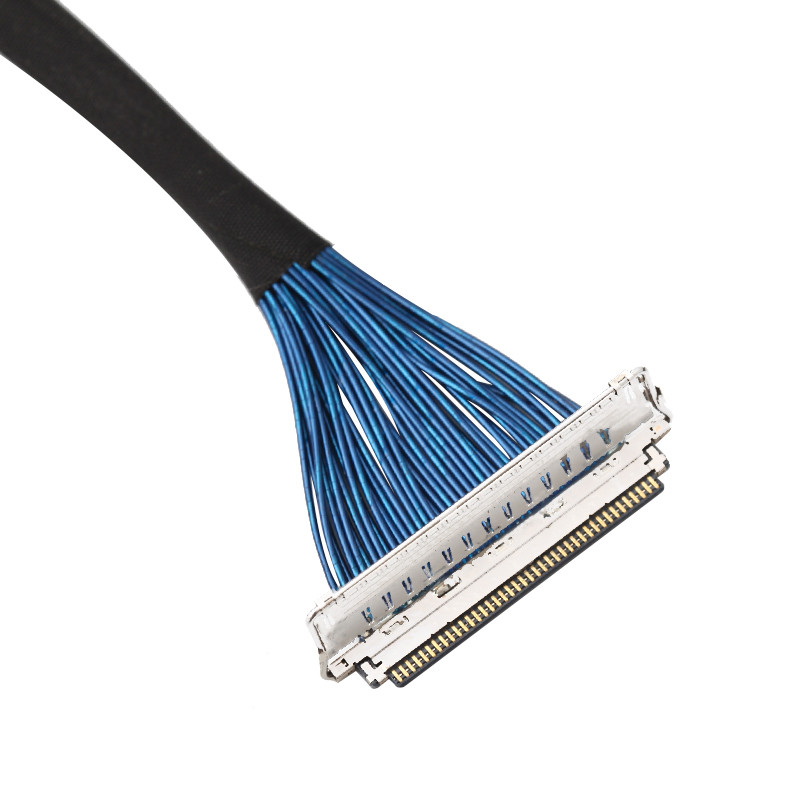

0.5mm Lvds Coaxial Cable 20847 020T 02 20849 020E 02 20849 020E 01 S
I-Pex CABLINE-VS II 0.5mm 20846-040t-01 Micro Coaxial Lvds Cable Assembly
product advantages:
Pursuing miniaturization and high-speed transmission, KEL connectors realize the
most advanced connection technology required for imaging equipmen
i-pex 20846 parameter list
|
Contact pitch |
0.50 mm |
|
Height |
1.20 Max |
|
Depth |
6.70 mm |
|
Width Formula |
6.85+(0.5 *?p) mm |
|
Pin count |
20 30 40 |
|
Micro-Coaxial Cable (AWG) |
#32,#34,#36,#38,#39,#40,#42,#44,#46 |
|
Current rating |
0.24A AC/DC [AWG #42] per contact 0.3A AC/DC [AWG #40] per contact 0.5A AC/DC [AWG #38] per contact 0.8A AC/DC [AWG #36] per contact 1.0A AC/DC [AWG #34] per contact for power 1.0A AC/DC [AWG #32] per contact for power |
|
Applicable Standards (Reference only) |
USB4 (20Gbps/lane),USB 3.1 Gen 1 (5 Gbps),eDP HBR 3 (8.1 Gbps), eDP HBR 2 (5.4 Gbps) ,eDp (2.7 Gbps), HDMI 2.0 (6 Gbps), V-By-One HS 1.4 (4 Gbps), MiPi standards |
|
Ful shielding (ZenShield) |
Yes |
|
Mechanical Lock |
Yes |
Applications:
1. Digital Video Camera
2. Digital Still Camera
3. Surveillance Camera
4. Car Navigation System
5. Ultrasound System
6. Endoscope
7. ETC
8. CT
9. VR
10. AR
11. Laptop
12. Tablet
13. Drone
14. Robotic Assembly
Recommended models:
20846-020T-01 20846-030T-01 20846-040T-01
20847-020T-01 20847-030T-01 20847-040T-01
3427-0201 3427-0301 3427-0401
20848-020T-01 20848-030T-01 20848-040T-01
20849-020E-01 20849-030E-01 20849-040E-01
Q1. Is it a factory?
A: Yes,we have more than 19 years of design and manufacturring experience!
Q2. How long does it take to place an order?
A: 3-4 weeks
Q3. Is there any certification?
A: Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q4. What is our specialty?
A: We can design products on the application.
Q5.Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq
1000PCs. Mould fee will be charged according to design.
Q6. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive
ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro
cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a
nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q7. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a
nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q8. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%
to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100
3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and
offer images, and we will solve your problem in the way of replacing with new order or refund.
Q9. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
How to contact us?
send your inquiry details in the below, click "send" now! free sample and best price are waiting for
you, if you can't find the product in our web, you can also send an inquiry to us, even if we don't make
it, we will find the same product with good quantity and good price.
