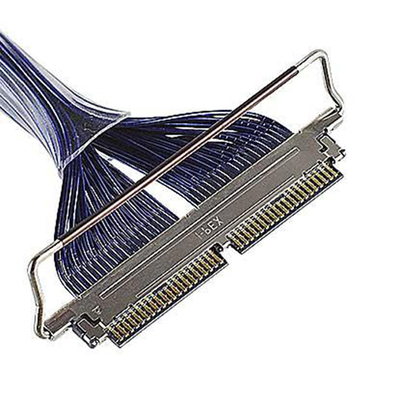

5.50mm CABLINE-CAL 40 Pin Lvds Ipex Micro Coaxial Cable 20728-040T-01 Horizontal
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Mating Direction||Horizontal||Contact Pitch||0.40 Mm|
|Height||0.80 Max (0.70 Nom.) ,||Depth||5.50 Mm|
|Width Formula||6.85+1.2+(0.4*40p) Mm||Pin Count||30 40|
|Micro-Coaxial Cable (AWG)||#38 #40 #42 #44 #46||Discrete Cable (AWG)||#34 #36 #38 #39 #40 #42 #44 #46|
5.50mm Micro Coaxial Cable,
40 Pin Micro Coaxial Cable,
Horizontal LVDS LCD Cable
0.4 mm pitch, Horizontal mating type micro-coaxial connector with mechanical lock (mating height: 0.8 mm max)
0.80 Max (0.70 Nom.) ,
|Micro-Coaxial Cable (AWG)||
#38 #40 #42 #44 #46
|Discrete Cable (AWG)||
#34 #36 #38 #39 #40 #42 #44 #46
|Applicable Standards (Reference Only)||
USB4 (20 Gbps/lane) USB 3.1 Gen 2 (10 Gbps) USB 3.1 Gen 1 (5 Gbps) eDP HBR 3 (8.1 Gbps) eDP HBR 2 (5.4 Gbps) eDP (2.7 Gbps) HDMI 2.0 (6 Gbps) V-By-One HS 1.4 (4 Gbps) MiPi standards
|Full shielding (ZenShield®)||
Suitable For Low Height Connector Space
High-data-rate Transfer, Ideal For Thunderbolt™ 3 (20 Gbps/lane) Applications
Mechanical Locking Bar Prevents Incomplete Mating and Back-out/Un-mating
sino-tech produces various cable assemblies in the field of drones, AR/VR, AR, VR and other micro coaxi
al cables, radar/navigation, cameras, security monitors, facial recognition payment, and has established c
ooperative relationships with customers. We have a strong and experienced technical team that can provi
de you with efficient solutions.
Q1. Is it a factory?
A:Yes,we have more than 15 years of design and manufacturring experience!
Q2. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A:We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq
1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive
ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro
cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a
nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a
nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the 20728-040T-01 cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%
to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100
3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and
offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
