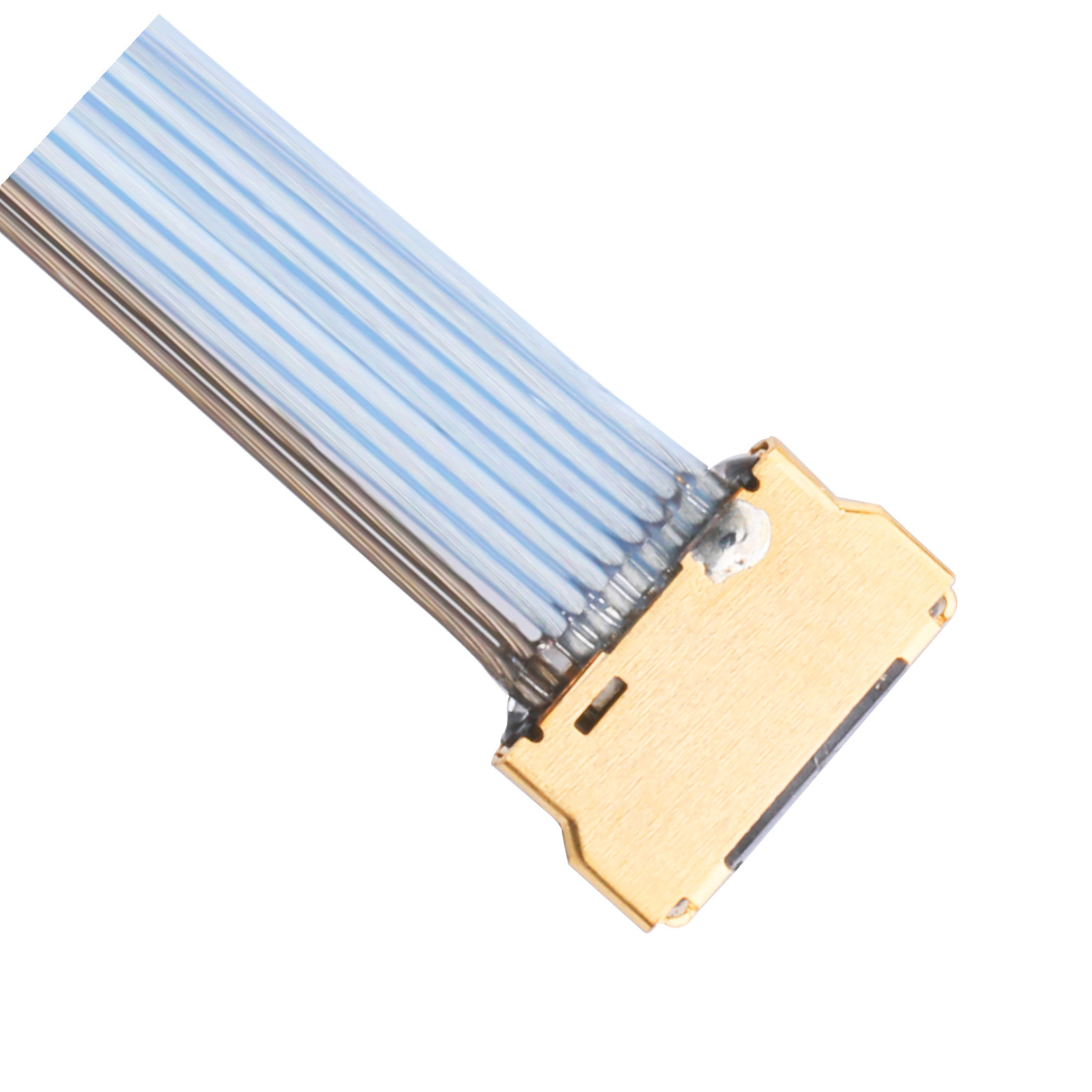

CABLINE-UY 20857-010t-01 ipex micro coax cable , 0.35mm micro coaxial cable assembly

Basic Information
Place of Origin: China
Brand Name: i-pex
Certification: UL ,ISO13485 , ISO9001.2005 , ISO14001
Model Number: 20857-010T-01
Minimum Order Quantity: 100PCS
Price: Price negotiable
Packaging Details: PE inner, carton outer
Delivery Time: 10-28 days upon receipt of payment
Payment Terms: T/T, Western Union
Supply Ability: 500,000pcs/week
Product Name: I-PEX 20857-010T-01 0.35mm Pitch Connector: 20857-010t-01
Micro-Coaxial Wire (AWG): #40 #42 #44 #46 Available Pin Count: 5 10
Contact Pitch: 0.35mm Item: Micro Coaxial Cable
Service: Design Length: ODM & OEM
High Light:

20857-005t-01 Fpc Connector Cable


I-Pex Molex Ffc Cable


0.35mm Molex Ffc Cable

I-Pex 20857-010t-01 Fpc Connecto Micro Coaxial Cable Assembly
product advantages:
Featuring mechanical and signal transmission benefits and advantages of Micro-Coaxial Cable Assemblies. These assemblies are capable of handling high data rates, while providing high degree of flexibility and high shielding performance.
I-PEX 20857-010T-01
Contact pitch 0.35 mm
Height 0.82 Max (0.76 Nom.) ,
Depth 3.10 mm
Width Formula

Wire plug : 2.15 + (0.35 * ?p) SMT plug : 2.02 + (0.35 * ?p)  mm

Pin count 5,10
Micro-Coaxial Cable (AWG) #40,#42,#44,#46
Discrete Cable (AWG) #36,#38,#40,#42,#44,#46
Applicable Standards (Reference Only) PCIe Gen 5 (32 GT/s) Thunderbolt 4 (20 Gbps/lane) eDP HBR 3 (8.1 Gbps)

Full shielding (ZenShieldxiao)

Mechanical lock  No


CABLINE-UY 20857-010t-01 ipex micro coax cable , 0.35mm micro coaxial cable assembly 0

1. Digital Video Camera                                2. Digital Still Camera
3. Surveillance Camera                                4. Car Navigation System
5. Ultrasound System                                   6. Endoscope
7. ETC                                                          8. CT
9. 5G                                                            10. Wi-Fi 6 / 6E
11. EMC Shield (ZenShield)                        12. Automotive
13. Data Centers                                         14. Smartphone
Company Profile
At present, our products have won unanimous praise from customers, with fast delivery time and favorable prices. It has more than 2,000 square feet of production facilities and more than 110 employees. 2 automatic mini coaxial cable assembly lines, 5 semi-automatic cable assembly lines, 1 assembly line, 3 automatic terminals, 12 manual terminals, 6 stripping terminals, and 8 wire testing equipment. 8 molding machines; etc. This ability allows us to meet very large production volumes and deliver products to all customers on time. However, not all of our production is based on high-volume orders. Please feel free to contact us for customized OEM/ODM
CABLINE-UY 20857-010t-01 ipex micro coax cable , 0.35mm micro coaxial cable assembly 1
CABLINE-UY 20857-010t-01 ipex micro coax cable , 0.35mm micro coaxial cable assembly 2CABLINE-UY 20857-010t-01 ipex micro coax cable , 0.35mm micro coaxial cable assembly 3CABLINE-UY 20857-010t-01 ipex micro coax cable , 0.35mm micro coaxial cable assembly 4

Q1. Is it a factory?
A: Yes,we have more than 16 years of design and manufacturring experience!
Q2. How long does it take to place an order?
A: 3-4 weeks
Q3. Is there any certification?
A: Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q4. What is our specialty?
A: We can design products on the application.
Q5.Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq

1000PCs. Mould fee will be charged according to design.
Q6. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive

ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro

cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a

nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q7. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a

nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q8. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%

to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100

3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and

offer images, and we will solve your problem in the way of replacing with new order or refund.
Q9. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
