|Place of Origin:||China|
|Certification:||UL ，ISO13485 , ISO9001.2005 , ISO14001|
|Minimum Order Quantity:||100PCS|
|Packaging Details:||PE inner, carton outer|
|Delivery Time:||10-28 days upon receipt of payment|
|Payment Terms:||T/T, Western Union|

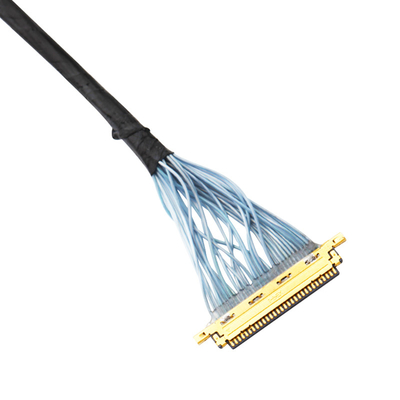

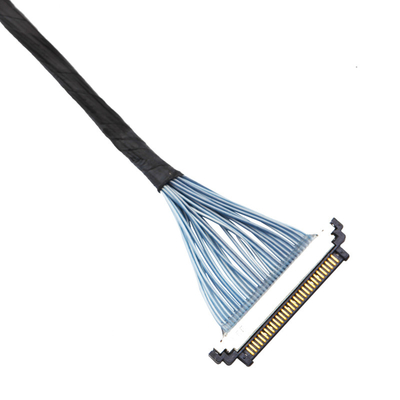

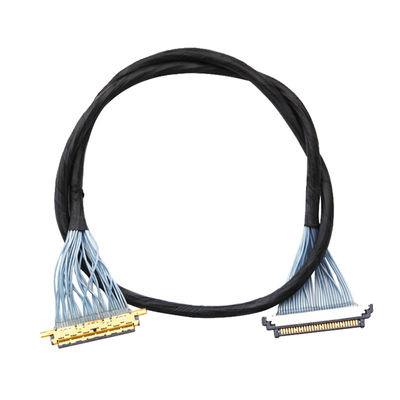

|Product Name:||Micro Coaxial Cable Assembly Kel Xsls20-30||Connector A:||I-pex 20454-030|
|Connector B:||Kel SSL20-30S||Micro-Coaxial Wire (AWG):||#36 #38 #40 #42 #44 #46|
|Available Pin Count:||20 30 40 50||Contact Pitch:||0.5pitch|
|Item:||Micro Coaxial Cable||Service:||Design|
|Length:||150mm||Express:||DHL FEDEX UPS TNT|
|current rating||0.25A per contact|
|contact resistance||100 mΩ or less|
|dielectric withstand voltage||AC200V, 1 minute|
|insulation resistance||DC250V, 100MΩ or more|
|operating temperature||-40 ℃ ～ + 85 ℃|
|conforming cable||AWG # 42
Extra-fine coaxial cable
|Contact pitch||0.50 mm|
|Height||1.10 Max (1.00 Nom.)|
|Width Formula||7.55+(0.5*?p) mm|
|Current rating||0.1A AC/DC [AWG #44] per contact/up to 50 contacts 0.24A AC/DC [AWG #42] per contact/up to 50 contacts 0.3A AC/DC [AWG #40] per contact/up to 50 contacts 0.5A AC/DC [AWG #38] per contact/up to 14 contacts 0.8A AC/DC [AWG #36] per contact/up to 10 contacts 1.0A AC/DC [AWG #34] per contact/up to 6 contacts 1.0A AC/DC [AWG #32] per contact/up to 6 contacts|
Q1. Is it a factory?
A: Yes,we have more than 15 years of design and manufacturring experience!
Q2. How long does it take to place an order?
A: 3-4 weeks
Q3. Is there any certification?
A: Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q4. What is our specialty?
A: We can design products on the application.
Q5.Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq
1000PCs. Mould fee will be charged according to design.
Q6. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive
ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro
cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a
nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q7. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a
nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q8. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%
to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100
3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and
offer images, and we will solve your problem in the way of replacing with new order or refund.
Q9. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
How to contact us?
send your inquiry details in the below, click "send" now! free sample and best price are waiting for
you, if you can't find the product in our web, you can also send an inquiry to us, even if we don't make
it, we will find the same product with good quantity and good price.
